Understanding Power System Buses

1. What exactly is a power system bus?

Okay, before you picture a big yellow school bus hooked up to a power grid (trust me, that's not it!), let's clarify what we're talking about. In the world of electrical power, a "bus" is a crucial node, a common connection point where multiple elements of the power system converge. Think of it as a sophisticated electrical junction box. It's where generators feed power into the system, and where loads (like your house or a factory) draw power from the system. It's the heart of the matter!

This shared connection allows for the smooth and reliable transfer of electrical energy. Without buses, it would be impossible to connect different components, like generators, transformers, and transmission lines, into a cohesive and functioning power system. They're the unsung heroes quietly keeping the lights on. It's like the linchpin holding the whole electricity shebang together.

These buses aren't physical wires necessarily, but rather idealized points in the system where we can analyze the voltage and power flow. Understanding the characteristics of these buses is critical for things like power system planning, stability analysis, and ensuring a dependable power supply. Imagine them as the central command points in an intricate electrical network.

They are the common point where components like generators, loads, and other elements of the power system are connected. It allows electrical energy to be transferred to/from various points of the system. A bus in a power system model typically represents a node in the network. This simplifies the analysis, as the model needs to account for the characteristics and interconnections of the different buses.

Power Systems 8 Types Of Electrical Bus Bar Connections

The Three Musketeers of Power System Buses

2. The different types of buses explained.

Now that we've established what a bus is, let's get down to the core of the matter: the three main types. Each type is defined by the known and unknown quantities at that particular bus. This information is crucial for performing load flow studies, which are essential for analyzing the performance of a power system. Each type plays a distinct role, giving us the vital clues we need to understand system performance. They each have their secrets, and that's what we need to find out!

We're talking about the Load Bus (P-Q Bus), the Generator Bus (P-V Bus), and the Slack Bus (Swing Bus). These three aren't triplets, but they are as important to power systems as the three musketeers were to France — All for one, and one for all, powering our world!

The classification of buses is not just academic; it directly impacts how we analyze and operate power systems. When planning expansions or addressing operational challenges, understanding the characteristics of each bus is crucial for making informed decisions. This ensures a stable, reliable, and efficient power delivery.

Think of them as characters in a play. Each has a defined role and purpose. In some situations you might only see two and in other cases there are all three. Their interaction allows the lights to stay on. They are all necessary and all work towards a single goal.

What Is Computer Bus? Types And Functions

Load Bus (P-Q Bus)

3. What you need to know about Load Buses.

The Load Bus, also known as the P-Q Bus, is probably the most common type. It represents a point in the system where electrical power is being consumed by a load, such as homes, businesses, or industries. The important thing about Load Buses is that we know both the real power (P, measured in MW) and the reactive power (Q, measured in MVAR) being drawn at that bus.

Since we know P and Q at a Load Bus, our goal during power system analysis is to determine the voltage magnitude (|V|) and the voltage angle () at that location. This information tells us about the "health" of the power supply at that point. Low voltage could indicate overloading or problems elsewhere in the system.

Imagine it like this: you know how much water is flowing out of a faucet (P and Q), and you want to know the pressure at the faucet (voltage magnitude) and how it relates to the pressure at the water source (voltage angle). Understanding these parameters is key to understanding the health of the Load Bus.

In simpler terms, the Load Bus tells the rest of the network how much power it needs to deliver to that specific location. It requests resources and the rest of the buses make sure it can meet this need. It might seem needy, but without load buses there is no power grid.

PPT CH03 System Buses PowerPoint Presentation, Free Download ID837090

Generator Bus (P-V Bus)

4. What you need to know about Generator Buses.

Now, let's talk about the Generator Bus, also known as the P-V Bus. As the name suggests, this type of bus is connected to a generator. At a Generator Bus, we know the real power (P) being generated and the voltage magnitude (|V|) that the generator is maintaining at that bus. The reactive power (Q) and the voltage angle () are what we need to figure out.

The generator regulates the voltage magnitude at the bus. This is crucial for maintaining system stability. However, the reactive power output of the generator is limited. If the reactive power demand exceeds this limit, the bus will switch to behaving like a Load Bus. It will start drawing reactive power from the rest of the system.

Think of a generator as a power plant. It pumps out power (P) and tries to keep the pressure (voltage magnitude) steady. The amount of "extra push" (reactive power) it can provide is limited. The system then has to decide how the bus reacts and adapts to the demand.

So to recap. We know the real power being supplied by the generator and the voltage magnitude at the terminal. This allows the system to predict how the bus will respond and provide a stable supply of power to the grid. It has a limit and that's an important consideration.

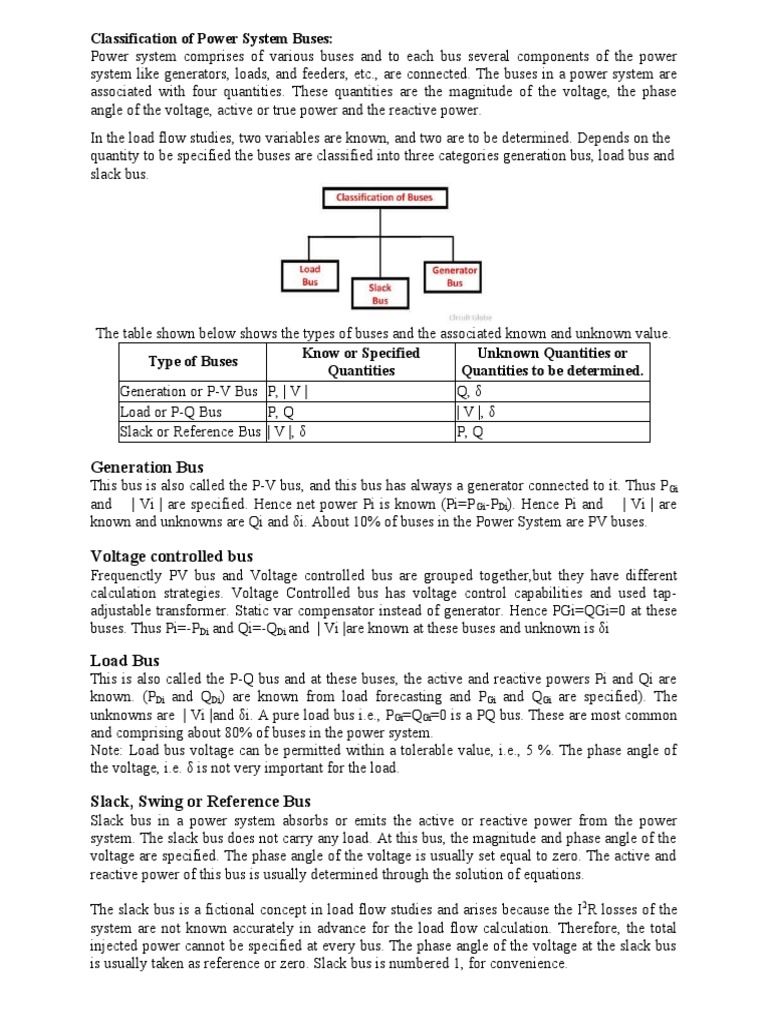

Classification Of Power System Buses PDF Engineering

Slack Bus (Swing Bus)

5. What you need to know about Slack Buses.

Finally, we arrive at the Slack Bus, also known as the Swing Bus. This is a very special bus and is essential for the entire system. In a load flow study, one bus must be designated as the Slack Bus. At the Slack Bus, we know both the voltage magnitude (|V|) and the voltage angle (). The real power (P) and reactive power (Q) are calculated by the load flow solution.

The Slack Bus serves as the reference point for the entire system. Its primary role is to account for any power losses that occur during transmission. It supplies or absorbs whatever amount of real and reactive power is necessary to balance the system. It's like the system's accountant, making sure everything adds up. It is the single point that makes sure the entire grid is balanced.

This bus is a single point of balance. Without it, the system will not function correctly. The Slack Bus will react to everything to make sure it evens everything out. So the next time something is a little bit off remember the Slack Bus and all the hard work it does behind the scenes.

Imagine the Slack Bus as the anchor. It keeps everything in its place. It does a lot of work behind the scenes so the generators, loads, and other system devices can run at peak efficiency. It is the most critical point to make sure everything stays balanced.

Why This Matters

6. How understanding bus types impacts power system operations.

Okay, so we've covered the three bus types. But why does any of this matter in the real world? Well, understanding these distinctions is crucial for a variety of reasons. First and foremost, it allows power system engineers to perform load flow studies. These studies are used to analyze the performance of a power system under different operating conditions.

By knowing the type of each bus in the system, engineers can accurately predict voltage levels, power flows, and losses. This information is essential for planning new transmission lines, upgrading existing equipment, and ensuring that the system can reliably meet the demands of its customers. If done incorrectly, the whole system can come crashing down and nobody wants that.

Furthermore, understanding bus types is critical for maintaining system stability. Generator buses, in particular, play a vital role in regulating voltage and frequency. Proper coordination of generators is essential for preventing blackouts and other catastrophic failures. Therefore, knowing the requirements of the bus and how it will interact with the rest of the system is paramount.

Ultimately, a solid grasp of bus types is essential for operating a power system safely, reliably, and efficiently. It's the foundation upon which all other aspects of power system analysis and design are built. The understanding of the three buses makes sure the lights stay on and for that we should be thankful.
